PHYSICAL SPECIFICATIONS
• DIMENSIONS & WEIGHT:
Height Wiidth Depth Weight Analyzer
82 cm 57 cm 54cm 55 Kg
33,4 in 23,3 in 22 in 122 lb
• PRINTER: Laser
• THROUGHPUT: Up to 80 samples/hour in stat mode or in automatic mode
• SOUND PRESSURE LEVEL: < 60 dBa
• OPERATING TEMPERATURE & HUMIDITY:
16 – 34°C (61 – 93°F) room temperature
Maximum relative humidity 80% for temperature up to 31°C (88°F)
linearly decreasing humidity at 40°C (104°F).
• SPECIMEN VOLUME:
CBC 30 μL
CBC + DIFF 53 μL
• POWER REQUIREMENTS:
Power supply from 100 V to 240 V (± 10 %)
50 Hz to 60 Hz
Power consumption Maximum 230 W
• REAGENTS:
5 reagents only: ABX Diluent
ABX Alphalyse or cyanide-free lyse (optional)
ABX Cleaner
ABX Eosinofix
ABX Basolyse II
METHODS & TECHNOLOGIES
MULTI DISTRIBUTION SAMPLING SYSTEM (“MDSS”)
• PRINCIPES DE DÉTECTION DES GR & PLA
Méthode Impédance
Diamètre de l’orifice 50 μm
Dépression de comptage 200 mb
Temps de comptage 2 x 6 secondes
Ratio de dilution 1/10 000
Température de réaction 35°C
• MESURE DE L’HB
Méthode Photométrie
Longueur d’onde 555 nm
Ratio de dilution 1/250
Température de réaction 35°C
• MESURE DE L’HT
Méthode Intégration mathématique
• PRINCIPES DE DÉTECTION DES GB & BASO
Méthode Impédance
Diamètre de l’orifice 80 μm
Dépression de comptage 200 mb
Temps de comptage 2 x 6 secondes
Ratio de dilution 1/200
Température de réaction 35°C
• DIFFÉRENCIATION DES GB
Méthode Impédance avec hydrofocus
Cytochimie & Cytométrie
Diamètre de l’orifice 60 μm
Diamètre du flux 42 μm
Durée d’injection 12 secondes
Ratio de dilution 1/80
Durée d’incubation 12 secondes
Température de réaction 35°C
• VGM,CCMH,TCMH,IDR,THT*,IDP*
Calcul
CERTIFICATION
SOFTWARE SPECIFICATIONS
• DATA PROCESSING :
Color LCD touch screen : 12 in.
Capacity : 10 000 results + graphics
Industrial PC board Windows NT 4.0
Celeron 433 MHz
RAM (128Mo), Hard disk (4,5 Go)
Floppy disk & CD ROM reader
RS 232C
User defined flagging limits
Transmit patient & QC to LIS
Mono & Bidirectional connections
ASTM protocol inside
• QUALITY CONTROL MANAGEMENT :
24 selectable QC files
XB : 100 operator selectable files with statistics
(20 samples per file)
Within run
Levey-Jennings graphs
• LOGS :
Reagents, quality controls, calibration, maintenance,
data handling, settings, communication, errors, blank cycle
PARAMETERS & PERFORMANCE DATA
• 26 PARAMETERS:
WBC RBC PLT
NE# & NE% HGB MPV
LY# & LY% HCT PCT*
MO# & MO% MCV PDW*
EOS# & EOS% MCH
BAS# & BAS% MCHC
ALY*# & ALY*% RDW
LIC*# & LIC*%
• LINEARITY:
WBC 0 - 120 x 103 /μL
RBC 0 - 8 x 106 /μL (8-18 x 106 /μL / reportable range)
HGB 1,3 - 24 g/dL
HCT 2 - 67 %
PLT 0 - 1 900 000 x 103 /μL
15 000 - 5 000 000 x 103 /μl (Plt Concentrate Mode)
• PRECISION:
Parameters %CV Range
WBC 1,32 4,0 - 11,0x 103 /μL
RBC 0,69 4,0 - 6,0 x 106 /μL
HGB 0,40 11,0 - 18,0 g/dL
HCT 0,69 35 - 55 %
RDW 0,40 80 - 100
PLT 2,87 150 - 400 x 103 /μL
MPV 1,16 7,6 - 10,9
NE% 1,27 50 - 80 %
LY% 2,16 25 - 50 %
MO% 5,8 2 - 10 %
EOS% 10,3 0 - 5 %
BAS% 15,3 0 - 2 %
• ACCURACY:
Mean % Mean Mean
Parameters Diff. Diff. value
WBC 2,7 0,2 7,70 x 103 /μL
RBC 2,3 0,10 4,34 x 106 /μL
HGB 2,2 0,3 13,04 g/dL
HCT 4 1,5 37,9 %
PLT 3,65 10 275 x 103 /μL
*Research Use Only

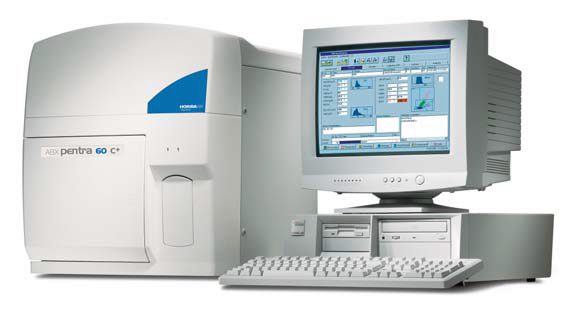

• DIMENSIONS & WEIGHT:
Height Width Depth Weight
Analyser 51,6 cm 44,4 cm 48,1 cm 35 Kg
22.3 in 17.5 in 19 in 77 lbs
• PRINTER:
Laser EPSON EPL5900
• THROUGHPUT:
Up to 60 samples/hour
• SOUND PRESSURE LEVEL:
< 60 dBa
• OPERATING TEMPERATURE & HUMIDITY:
16 – 34°C (61 – 93°F) room temperature
Maximum relative humidity 80% for temperature up to 31°C
(88°F) decreasing linearity humidity at 40°C (104°F).
• SPECIMEN VOLUME:
CBC Mode 30 μL
CBC + DIFF 53 μL
• POWER REQUIREMENTS:
Power supply from 100 Vac to 240 Vac ± 10%
50 Hz to 60 Hz
Power consumption Analyser and computer 400 VA
• REAGENTS:
5 reagents only: Diluent
Alphalyse or cyanide free lyse (optional)
Cleaner
Eosinofix
Basolyse II
MULTI DISTRIBUTION SAMPLING SYSTEM “MDSS”
• RBC/PLT DETECTION PRINCIPLES
Method Impedance
Ruby diameter 50 μm
Counting depression 200 mb
Counting duration 2 x 5 seconds
Dilution ratio 1/10 000
Reaction temperature 35°C
• HGB MEASUREMENT
Method Photometry
Wavelength 555 nm
Dilution ratio 1/250
Reaction temperature 35°C
• HCT MEASUREMENT
Method Numeric integration
• WBC & BASO COUNT
Method Impedance
Ruby diameter 80 μm
Counting depression 200 mb
Counting duration 2 x 6 seconds
Dilution ratio 1/200
Reaction temperature 35°C
• LEUCOCYTE DIFFERENTIATION
Method Impedance with hydrofocus
Cytometry & Cytochimical
Ruby diameter 60 μm
Diameter of the flow 42 μm
Injection duration 12 seconds
Dilution ratio 1/80
Incubation duration 12 seconds
Reaction temperature 35°C
• MCV, MCH, MCHC, RDW, PCT*, PDW*
Calculation
NF EN 1010-1 UL 3101-1
NF EN 61326.B
NF EN 61000-3-2
NF EN 61000-3-3
